ADIVAdrc
It is far easier to resolve a design mistake before product release. Whether it is a connectivity issue, library issue, routing issue or manufacturability issue, we are all human and mistakes happen. Some are generated by the host CAD software, some are created by the designer or librarian, some are created through a simple misunderstanding, some from poor procedures or even lack of training. The worst mistakes are created while making changes at the last minute - rushing to ship the design.
With ADIVA's DRC Checking tool, ADIVAdrc, you can find and resolve these types of issues along with corporate and manufacturing design rule violations during the design process - before your design data is released to fabrication.
Analyze your design for problems that impact Performance, Fabrication and Assembly

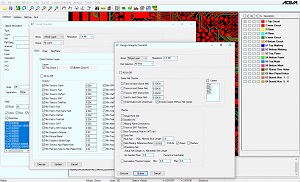

Create, Save and Control your own Design Rule Tables
Prepare and use Multiple Rule Sets in a Menu driven format
Run specific checks by Net or Group of Nets
Verify what CAD systems should check
Validate what CAD systems do not check

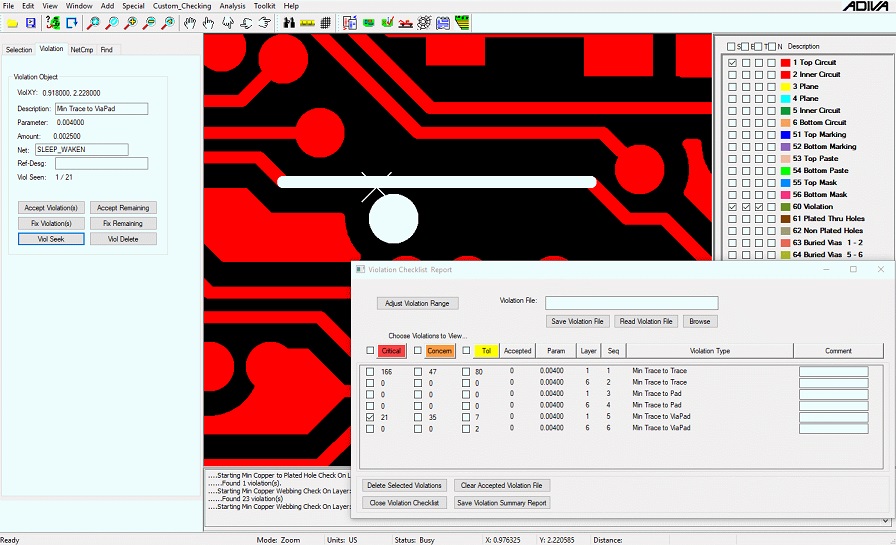

Full graphical Design Review & Reporting

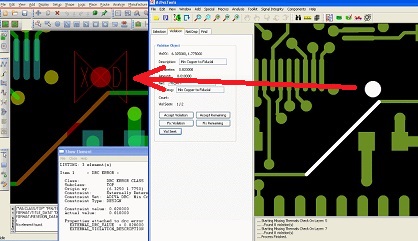

Link Critical violations to CAD for easy correction
Captures Digital Images for Network Display and Sharing

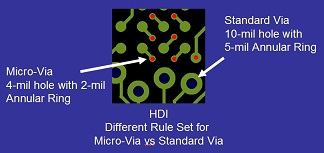

Apply Different Rule Sets for targeted areas on the board

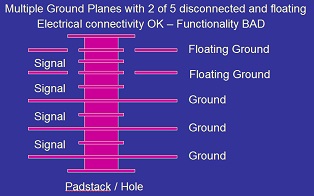

Analyze and report Design Integrity problems
Apply Different Rule Sets for targeted areas on the board
Analyze and report Design Integrity problems

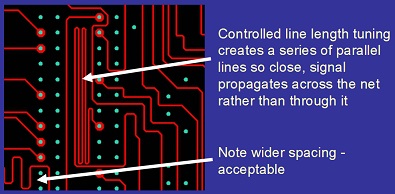

Verify Circuit performance
